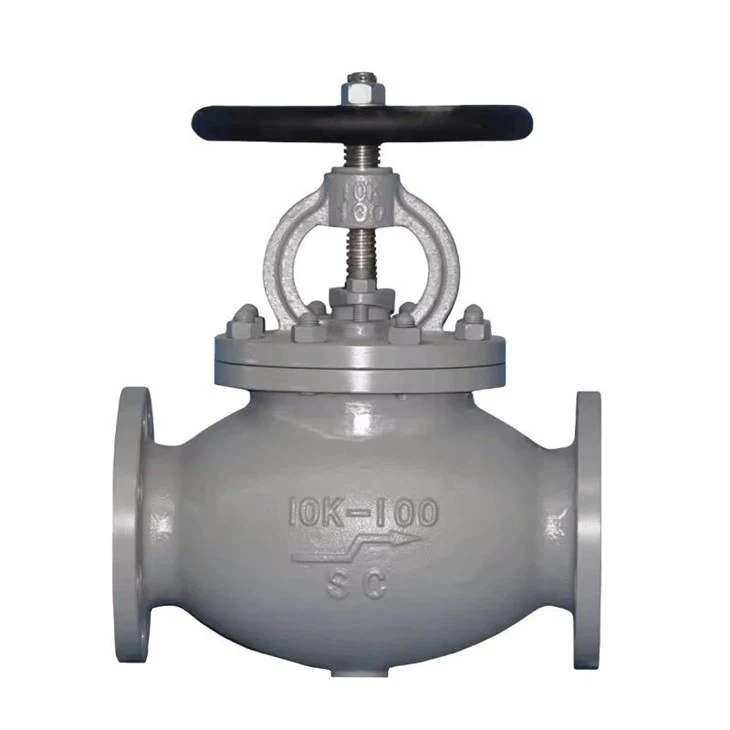

Jis Cam khwb cia hlau 10k Globe Valve
JIS Cam khwb cia hlau 10K Globe Valve
|
[Cov yam ntxwv nta thiab kev siv lub teb chaws tus qauv cam khwb cia steel nres valve] 1.Thaum kaw tag nrho, lub handwheel tig clockwise. 2.Atable mus rau mounted rau txhua txoj hauj lwm ntawm lub raj xa dej, qhov nruab nrab ntws los ntawm nqes mus txog rau. 3.Stainless steel ua nres valve yog cov khoom zoo los tiv thaiv corrosive thiab txaus lub zog thiab haum rau ntau yam kav dej nrog corrosive nruab nrab. 4.Alloy steel ua nres valve nta siab-kub tsis kam, haum rau high-temperature chav thiab roj khoom pipelines.
|
| Kev faib khoom | Lub npe | |||||||
| Lub cev lub kaus mom | Valve qia | Disc | Lub ntsej muag sealing | Yoke noob | Ntim | Fastener | Handwheel | |
| J41(H.Y)-C型 J941(H.Y)-C型 | 25 ,wb | Cr.Stainless hlau | 2 tx1325 | H: Stainless hlauY: Co-based carbide alloy steel | Albronze | Saj zawg zog graphite | High-qib carbon steel | Forgeable cam khwb cia hlau |
|
J41W-P J941W-P |
Cr.Ni.Ti steel | Cr.Ni.Ti steel | Cr.Ni.Ti steel | Cr.Ni.Ti steel | Albronze | Saj zawg zog graphite | Stainless hlau | Forgeable cam khwb cia hlau |
| J41W-R | Cr.Ni.Mo.Ti steel | Cr.Ni.Mo.Ti steel | Cr.Ni.Mo.Ti steel | Cr.Ni.Mo.Ti steel | Albronze | Saj zawg zog graphite | Stainless hlau | Forgeable cam khwb cia hlau |
|
J41Y-I J941Y-I型 |
Cr.Mo steel | Cr.Mo steel | Hlau alloy | C0-raws li carbide alloy steel | Albronze | Saj zawg zog graphite | Hlau alloy | Forgeable cam khwb cia hlau |
| PN (MPa) Nominal siab | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 |
| Plhaub lub zog kuaj | 2.4 | 3.8 | 6.0 | 9.6 | 15 | 24 |
| Back seal test | 1.8 | 2.8 | 4.4 | 7.0 | 11 | 18 |
| Foob xeem | 1.8 | 2.8 | 4.4 | 7.0 | 11 | 18 |
Cim npe nrov: jis cam khwb cia steel 10k ntiaj teb valve, Tuam Tshoj jis cam khwb cia steel 10k ntiaj teb valve manufacturers, lwm tus neeg, Hoobkas
